G3240T - processor specifications

ProcessorG3240T
Base frequency2.70 GHz
SocketLGA1150
TDP35 W
CPU-Info Benchmark

Intel Pentium G3240T ranking

A calculated comparison score based on processor specifications.

Points37 851
Rank540
Compare nine processors
At a glance: G3240T
Intel Pentium G3240T:

Main specifications

Official model name G3240T
Manufacturer Intel
Release date (month and year)February 2014
CPU socketLGA1150
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
Thermal monitoringYes
TDP (thermal design power)35 W
Maximum specified temperature66°C

CPU performance

Processor family Pentium
Code nameHaswell
Turbo Boost supportYes
Physical cores2
Logical threads2
Base clock speed2.70 GHz
Bus speed5 GT/s
Total L3 cache3 Mb
Manufacturing process22 nm

Memory

Supported memory types and speeds DDR3-1333 MHz
Maximum memory capacity32 GB
Maximum memory bandwidth21.3 GB/s
ECC memory supportYes

Graphics

Integrated graphics Intel HD Graphics
Integrated GPU base frequency200 MHz
Integrated GPU maximum frequency1.10 GHz
PCI Express version3.0
Maximum PCI Express lanes16
DirectX support11.1/12
OpenGL support4.3
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
Graph Max Mem1.7 GB
Maximum HDMI resolution1920x1080
HDMI refresh rate at maximum resolution60Hz
Maximum DisplayPort resolution2560x1600
DisplayPort refresh rate at maximum resolution60Hz
Maximum eDisplayPort resolution2560x1600
eDisplayPort refresh rate at maximum resolution60Hz

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , VT-X , EM64T .

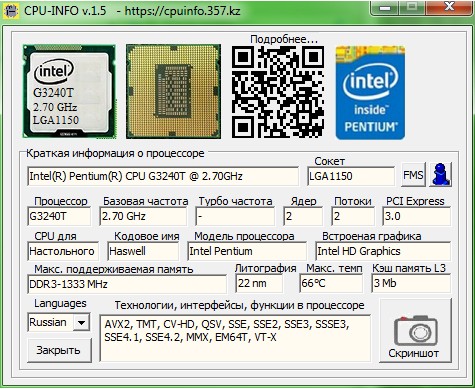

CPU-Info screenshot for G3240T

Original CPU-Info screenshot - G3240T

Specifications on your phone

QR code for the G3240T specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
536G3440T38 201
537i3-3240T38 111
538G390038 101
539X548237 991
540G3240T37 851
541G3420T37 851
542X338037 831
543X546037 831
544i3-3220T37 621

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Pentium G3240T: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Pentium G3240T is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for G3240T includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 37 851 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
