G3900 - processor specifications

ProcessorG3900
Base frequency2.80 GHz
SocketLGA1151
TDP51 W
CPU-Info Benchmark

Intel Celeron G3900 ranking

A calculated comparison score based on processor specifications.

Points38 101
Rank538
Compare nine processors
At a glance: G3900
Intel Celeron G3900:

Main specifications

Official model name G3900
Manufacturer Intel
Release date (month and year)April 2015
CPU socketLGA1151
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
Thermal monitoringYes
TDP (thermal design power)51 W
Maximum specified temperature65°C

CPU performance

Processor family Celeron
Code nameSkylake
Turbo Boost supportYes
Physical cores2
Logical threads2
Base clock speed2.80 GHz
Bus speed8 GT/s
Total L3 cache2 Mb
Manufacturing process14 nm

Memory

Supported memory types and speeds DDR3-1333/1600, DDR4-1866/2133
Maximum memory capacity64 GB
Maximum memory bandwidth34.1 GB/s
ECC memory supportYes

Graphics

Integrated graphics Intel HD Graphics 510
Integrated GPU base frequency350 MHz
Integrated GPU maximum frequency950 MHz
PCI Express version3.0
Maximum PCI Express lanes16
DirectX support12
OpenGL support4.4
4K supportYes
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
InTru 3DYes
Graph Max Mem64 GB
Maximum HDMI resolution4096x2304
HDMI refresh rate at maximum resolution24Hz
Maximum DisplayPort resolution4096x2304
DisplayPort refresh rate at maximum resolution60Hz
Maximum eDisplayPort resolution4096x2304
eDisplayPort refresh rate at maximum resolution60Hz

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , EPT , VT-D , EM64T , SecureKey .

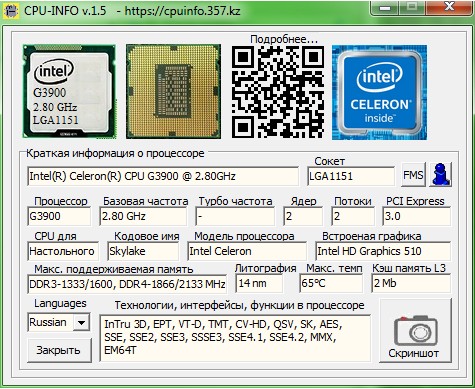

CPU-Info screenshot for G3900

Original CPU-Info screenshot - G3900

Specifications on your phone

QR code for the G3900 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
534G392038 401
535G3250T38 201
536G3440T38 201
537i3-3240T38 111
538G390038 101
539X548237 991
540G3240T37 851
541G3420T37 851
542X338037 831

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Celeron G3900: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Celeron G3900 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for G3900 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 38 101 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
