X5460 - processor specifications

ProcessorX5460
Base frequency3.16 GHz
SocketLGA771
TDP120 W
CPU-Info Benchmark

Intel Xeon X5460 ranking

A calculated comparison score based on processor specifications.

Points37 831
Rank543
Compare nine processors
At a glance: X5460
Intel Xeon X5460:

Main specifications

Official model name X5460
Manufacturer Intel
Release date (month and year)April 2007
CPU socketLGA771
Transistor count820 million
Package dimensions37.5mm x 37.5mm
Intended useserver computer
Thermal monitoringYes
TDP (thermal design power)120 W
Maximum specified temperature63°C

CPU performance

Processor family Xeon
Code nameHarpertown
Turbo Boost supportYes
Physical cores4
Base clock speed3.16 GHz
Bus speed1333 MHz
Total L2 cache12 Mb
Manufacturing process45 nm

Memory

Supported memory types and speeds DDR2 667/800 MHz DDR3 1066 MHz
Maximum memory capacity4/8 GB

Graphics

Not specified.

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE4.1 , VT-X , EM64T .

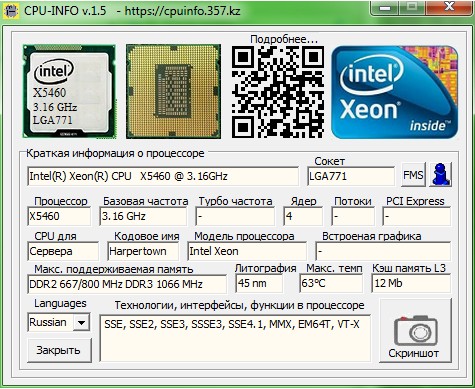

CPU-Info screenshot for X5460

Original CPU-Info screenshot - X5460

Specifications on your phone

QR code for the X5460 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
539X548237 991
540G3240T37 851
541G3420T37 851
542X338037 831
543X546037 831
544i3-3220T37 621
545G3220T37 501
546E545037 191
547E547237 191

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Xeon X5460: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Xeon X5460 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for X5460 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 37 831 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
