i5-2320 - processor specifications

Processori5-2320
Base frequency3.00 GHz
SocketLGA1155
TDP95 W
CPU-Info Benchmark

Intel Core i5-2320 ranking

A calculated comparison score based on processor specifications.

Points53 000
Rank464
Compare nine processors
At a glance: i5-2320
Intel Core i5-2320:
Socket: LGA1155.
Family: Core i5 ?.
Code name: Sandy Bridge.
Release: March 2011.
Physical cores: 4.
Threads: 4.
Base speed: 3.00 GHz.
Maximum Turbo: 3.30 GHz.
Memory: DDR3 1066/1333 MHz.

Main specifications

Official model name i5-2320
Manufacturer Intel
Release date (month and year)March 2011
CPU socketLGA1155
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
Thermal monitoringYes
TDP (thermal design power)95 W
Maximum specified temperature72°C

CPU performance

Processor family Core i5
Code nameSandy Bridge
Turbo Boost supportYes
Physical cores4
Logical threads4
Base clock speed3.00 GHz
Maximum Turbo frequency3.30 GHz
Bus speed5 GT/s
Total L3 cache6 Mb
Manufacturing process32 nm

Memory

Supported memory types and speeds DDR3 1066/1333 MHz
Maximum memory capacity32 GB
Maximum memory bandwidth21 GB/s

Graphics

Integrated graphics Intel HD Graphics 2000
Integrated GPU base frequency850 MHz
Integrated GPU maximum frequency1.10 GHz
PCI Express version2.0
Maximum PCI Express lanes16
FDI graphics interfaceYes
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
InTru 3DYes

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE4.1 , AES , VT-X , AVX , EM64T .

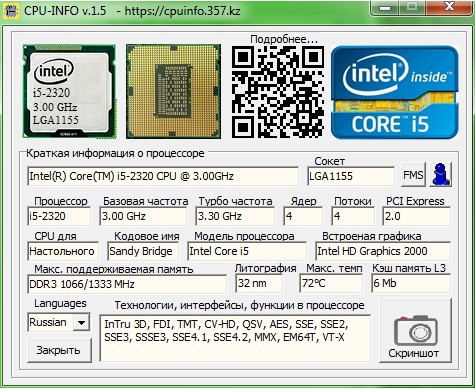

CPU-Info screenshot for i5-2320

Original CPU-Info screenshot - i5-2320

Specifications on your phone

QR code for the i5-2320 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
460G4560T54 611
461G5420T54 421
462i5-240054 000
463i5-2380P53 650
464i5-232053 000
465i5-2400S52 800
466i5-2405S52 800
467G492052 401
468i5-2500T52 400

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i5-2320: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Core i5-2320 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Code name: Sandy Bridge. Release: March 2011. Socket: LGA1155. Package: 37.5mm x 37.5mm. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Physical cores: 4. Logical threads: 4. Base frequency: 3.00 GHz. Maximum Turbo frequency: 3.30 GHz. L3 cache: 6 Mb. Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

Memory support: DDR3 1066/1333 MHz. Maximum memory: 32 GB. Integrated GPU: Intel HD Graphics 2000. PCI Express: 2.0. Manufacturing process: 32 nm. TDP: 95 W. A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for i5-2320 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 53 000 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
