G5420T - processor specifications

ProcessorG5420T
Base frequency3.20 GHz
SocketLGA1151
TDP35 W
CPU-Info Benchmark

Intel Pentium G5420T ranking

A calculated comparison score based on processor specifications.

Points54 421
Rank461
Compare nine processors
At a glance: G5420T
Intel Pentium G5420T:

Main specifications

Official model name G5420T
Manufacturer Intel
Release date (month and year)February 2019
CPU socketLGA1151
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
Thermal monitoringYes
TDP (thermal design power)35 W
Maximum specified temperature88°C

CPU performance

Processor family Pentium
Code nameCoffee Lake
Turbo Boost supportYes
Physical cores2
Logical threads4
Base clock speed3.20 GHz
Hyper-Threading technologyYes
Bus speed8 GT/s
Total L3 cache4 Mb
Manufacturing process14 nm

Memory

Supported memory types and speeds DDR4-2400 MHz
Maximum memory capacity64 GB
Maximum memory bandwidth37.5 GB/s
ECC memory supportYes
Optane Memory SupportedYes

Graphics

Integrated graphics Intel UHD Graphics 610
Integrated GPU base frequency350 MHz
Integrated GPU maximum frequency1.05 GHz
PCI Express version3.0
Maximum PCI Express lanes16
DirectX support12
OpenGL support4.5
4K supportYes
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
InTru 3DYes
Graph Max Mem64 GB
Maximum HDMI resolution4096x2304
HDMI refresh rate at maximum resolution24Hz
Maximum DisplayPort resolution4096x2304
DisplayPort refresh rate at maximum resolution60Hz
Maximum eDisplayPort resolution4096x2304
eDisplayPort refresh rate at maximum resolution60Hz

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , EPT , VT-D , EM64T , SecureKey , OS Guard .

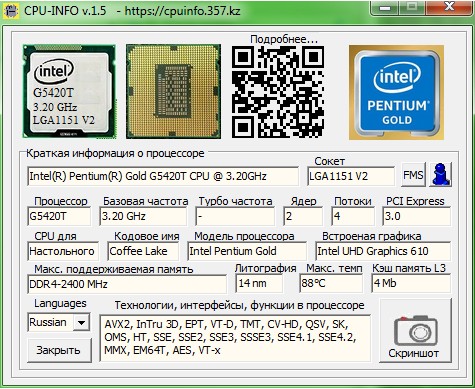

CPU-Info screenshot for G5420T

Original CPU-Info screenshot - G5420T

Specifications on your phone

QR code for the G5420T specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
457G4600T55 101
458G5600T54 981
459i5-2450P54 650
460G4560T54 611
461G5420T54 421
462i5-240054 000
463i5-2380P53 650
464i5-232053 000
465i5-2400S52 800

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Pentium G5420T: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Pentium G5420T is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for G5420T includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 54 421 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
