E-2224 - processor specifications

ProcessorE-2224
Base frequency3.40 GHz
SocketLGA1151
TDP71 W
CPU-Info Benchmark

Intel Xeon E-2224 ranking

A calculated comparison score based on processor specifications.

Points116 300
Rank221
Compare nine processors
At a glance: E-2224
Intel Xeon E-2224:

Main specifications

Official model name E-2224
Manufacturer Intel
Release date (month and year)February 2019
CPU socketLGA1151
Package dimensions37.5 mm x 37.5 mm
Intended useserver computer
Thermal monitoringYes
TDP (thermal design power)71 W
Maximum specified temperature69°C

CPU performance

Processor family Xeon
Code nameCoffee Lake
Turbo Boost supportYes
Physical cores4
Logical threads4
Base clock speed3.40 GHz
Maximum Turbo frequency4.60 GHz
Bus speed8 GT/s
Total L3 cache8 Mb
Manufacturing process14 nm

Memory

Supported memory types and speeds DDR4-2666 MHz
Maximum memory capacity128 GB
ECC memory supportYes
Optane Memory SupportedYes

Graphics

PCI Express version3.0
Maximum PCI Express lanes16
DirectX supportN/A
Clear Video HD technologyNo
QSV (Quick Sync Video)No

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , AVX , AVX2 , TSX-NI , EPT , VT-D , TXT , EM64T , SecureKey , OS Guard .

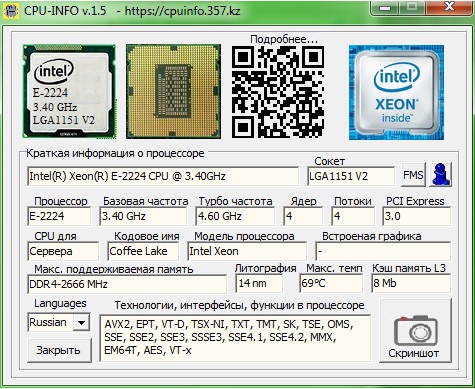

CPU-Info screenshot for E-2224

Original CPU-Info screenshot - E-2224

Specifications on your phone

QR code for the E-2224 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
217E-2224G117 500
218i5-8600T117 250
219E3-1240 V6116 660
220E3-1245 V6116 660
221E-2224116 300
222i5-9400T116 000
223i3-9320114 900
224i3-9300113 900
225i5-8500T113 350

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Xeon E-2224: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Xeon E-2224 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for E-2224 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 116 300 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
