i7-11700T - back-side photo

i7-11700T - back-side photo
i7-11700T, back view
Detailed specifications →Front photo →
CPU-Info Benchmark

Intel Core i7-11700T ranking

A calculated comparison score based on processor specifications.

Points201 188
Rank144
Compare nine processors

Processor contact side

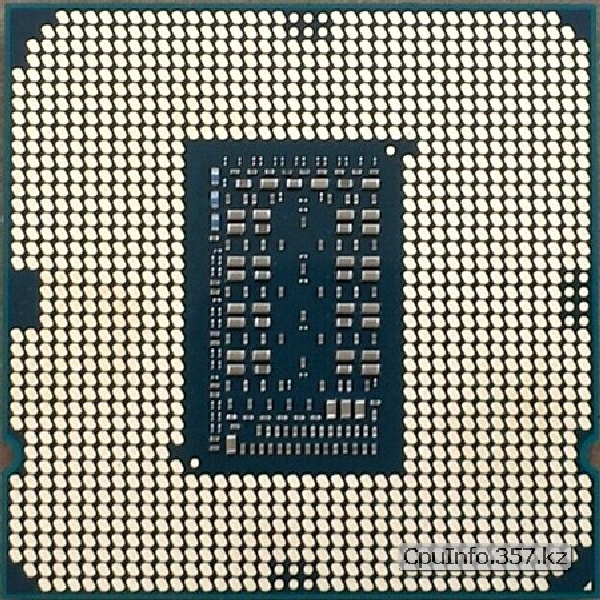

This photograph shows the back of the i7-11700T processor, including its contact side and substrate components. Detailed technical specifications are available on the model page.

Key specifications

Modeli7-11700T
SocketLGA1200
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
140i7-10700T202 740
141i5-10500202 660
142E-2276G202 180
143i7-10700TE201 340
144i7-11700T201 188
145E-2246G196 460
146i7-9700K196 250
147i7-9700KF196 250
148i5-10400195 940

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i7-11700T: back-side photograph and contacts

Examining the contact side

The back-view photograph of Intel Core i7-11700T shows the processor substrate and its electrical contact area. Package and contact designs vary by processor family. Visual inspection can reveal obvious contamination or mechanical damage, but it cannot confirm that every connection works correctly or that the processor will initialize in a computer.

Why the socket matters

Specified socket: the socket listed in the specification table. Processors from different Intel families can share similar exterior dimensions without being interchangeable. Always compare the board socket, keying, supported CPU list and BIOS requirements. Do not attempt to install a processor using force when alignment or compatibility is uncertain.

Safe inspection before installation

Before fitting i7-11700T, inspect the motherboard socket and the processor contact surfaces under good lighting. Avoid touching exposed contacts unnecessarily. Check for contamination, damaged pads, bent socket contacts and signs of prior repairs. Follow suitable electrostatic-discharge precautions when handling loose PC components.

How contacts relate to CPU specifications

The electrical interface connects the processor to motherboard power, memory and communication signals. Published model specifications tell you which platform to use; the photograph only illustrates the package and its physical connection surface.

Using the photograph for comparison

Compare this image with the front-side photograph and the detailed specification table for i7-11700T. The reference also provides CPU-Info Benchmark scores and neighboring processors. These calculated results help organize model comparisons but do not constitute an on-device performance test or a diagnosis of a processor's condition.
