E-2276G - processor specifications

ProcessorE-2276G
Base frequency3.80 GHz
SocketLGA1151
TDP80 W
CPU-Info Benchmark

Intel Xeon E-2276G ranking

A calculated comparison score based on processor specifications.

Points202 180
Rank142
Compare nine processors
At a glance: E-2276G
Intel Xeon E-2276G:

Main specifications

Official model name E-2276G
Manufacturer Intel
Release date (month and year)February 2019
CPU socketLGA1151
Package dimensions37.5 mm x 37.5 mm
Intended useserver computer
Thermal monitoringYes
TDP (thermal design power)80 W
Maximum specified temperature73°C

CPU performance

Processor family Xeon
Code nameCoffee Lake
Turbo Boost supportYes
Physical cores6
Logical threads12
Base clock speed3.80 GHz
Maximum Turbo frequency4.90 GHz
Hyper-Threading technologyYes
Bus speed8 GT/s
Total L3 cache12 Mb
Manufacturing process14 nm

Memory

Supported memory types and speeds DDR4-2666 MHz
Maximum memory capacity128 GB
ECC memory supportYes
Optane Memory SupportedYes

Graphics

Integrated graphics Intel UHD Graphics P630
Integrated GPU base frequency350 MHz
Integrated GPU maximum frequency1.20 GHz
PCI Express version3.0
Maximum PCI Express lanes16
DirectX support12
OpenGL support4.5
4K supportYes
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
InTru 3DYes
Graph Max Mem128 GB
Maximum HDMI resolution4096x2160
HDMI refresh rate at maximum resolution24Hz
Maximum DisplayPort resolution4096x2304
DisplayPort refresh rate at maximum resolution60Hz
Maximum eDisplayPort resolution4096x2304
eDisplayPort refresh rate at maximum resolution60Hz

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , AVX , AVX2 , TSX-NI , EPT , VT-D , TXT , EM64T , SecureKey , OS Guard .

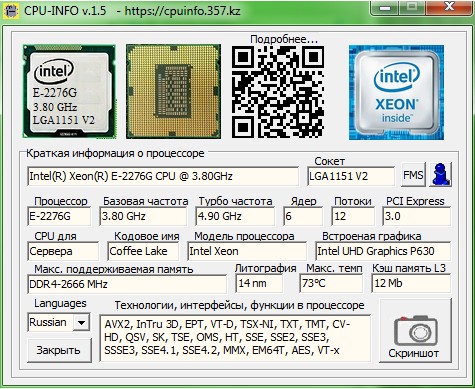

CPU-Info screenshot for E-2276G

Original CPU-Info screenshot - E-2276G

Specifications on your phone

QR code for the E-2276G specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
138i3-12100204 420
139i3-12100F204 420
140i7-10700T202 740
141i5-10500202 660
142E-2276G202 180
143i7-10700TE201 340
144i7-11700T201 188
145E-2246G196 460
146i7-9700K196 250

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Xeon E-2276G: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Xeon E-2276G is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for E-2276G includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 202 180 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
