G540T - back-side photo

G540T - back-side photo
G540T, back view
Detailed specifications →Front photo →
CPU-Info Benchmark

Intel Celeron G540T ranking

A calculated comparison score based on processor specifications.

Points19 701
Rank609
Compare nine processors

Processor contact side

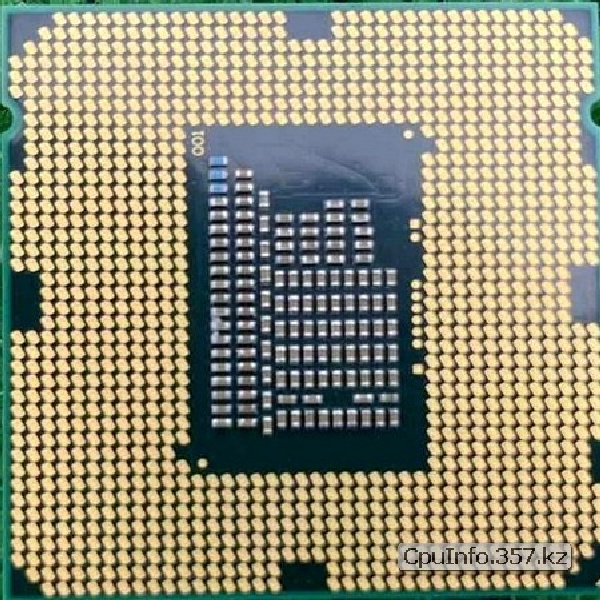

This photograph shows the back of the G540T processor, including its contact side and substrate components. Detailed technical specifications are available on the model page.

Key specifications

ModelG540T
SocketLGA1155
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
605G54021 501
606G53021 201
607G550T20 001
608G696019 756
609G540T19 701
610G530T19 401
611G695019 301
612G695119 301
613G47017 851

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Celeron G540T: back-side photograph and contacts

Examining the contact side

The back-view photograph of Intel Celeron G540T shows the processor substrate and its electrical contact area. Package and contact designs vary by processor family. Visual inspection can reveal obvious contamination or mechanical damage, but it cannot confirm that every connection works correctly or that the processor will initialize in a computer.

Why the socket matters

Specified socket: the socket listed in the specification table. Processors from different Intel families can share similar exterior dimensions without being interchangeable. Always compare the board socket, keying, supported CPU list and BIOS requirements. Do not attempt to install a processor using force when alignment or compatibility is uncertain.

Safe inspection before installation

Before fitting G540T, inspect the motherboard socket and the processor contact surfaces under good lighting. Avoid touching exposed contacts unnecessarily. Check for contamination, damaged pads, bent socket contacts and signs of prior repairs. Follow suitable electrostatic-discharge precautions when handling loose PC components.

How contacts relate to CPU specifications

The electrical interface connects the processor to motherboard power, memory and communication signals. Published model specifications tell you which platform to use; the photograph only illustrates the package and its physical connection surface.

Using the photograph for comparison

Compare this image with the front-side photograph and the detailed specification table for G540T. The reference also provides CPU-Info Benchmark scores and neighboring processors. These calculated results help organize model comparisons but do not constitute an on-device performance test or a diagnosis of a processor's condition.
