G6950 - processor specifications

ProcessorG6950
Base frequency2.80 GHz
SocketLGA1156
TDP73 W
CPU-Info Benchmark

Intel Pentium G6950 ranking

A calculated comparison score based on processor specifications.

Points19 301
Rank611
Compare nine processors
At a glance: G6950
Intel Pentium G6950:

Main specifications

Official model name G6950
Manufacturer Intel
Release date (month and year)January 2010
CPU socketLGA1156
Transistor count382 million
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
TDP (thermal design power)73 W
Maximum specified temperature72°C

CPU performance

Processor family Pentium
Code nameClarkdale
Turbo Boost supportYes
Physical cores2
Logical threads2
Base clock speed2.80 GHz
Bus speed2.5 GT/s
Total L3 cache3 Mb
Manufacturing process32 nm

Memory

Supported memory types and speeds DDR3 1066 MHz
Maximum memory capacity16 GB
Maximum memory bandwidth17 GB/s

Graphics

Integrated GPU base frequency533 MHz
PCI Express version2.0
Maximum PCI Express lanes16
FDI graphics interfaceYes

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE4.1 , VT-X , EM64T .

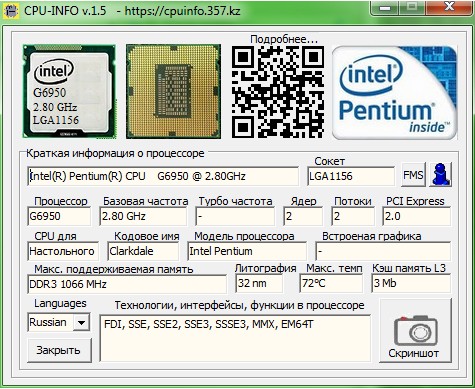

CPU-Info screenshot for G6950

Original CPU-Info screenshot - G6950

Specifications on your phone

QR code for the G6950 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
607G550T20 001
608G696019 756
609G540T19 701
610G530T19 401
611G695019 301
612G695119 301
613G47017 851
614G46517 659
615G46017 466

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Pentium G6950: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Pentium G6950 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for G6950 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 19 301 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
