i7-9700 - front-side photo

i7-9700 - front-side photo
i7-9700, front view
Detailed specifications →Back photo →
CPU-Info Benchmark

Intel Core i7-9700 ranking

A calculated comparison score based on processor specifications.

Points180 500
Rank161
Compare nine processors

Processor markings

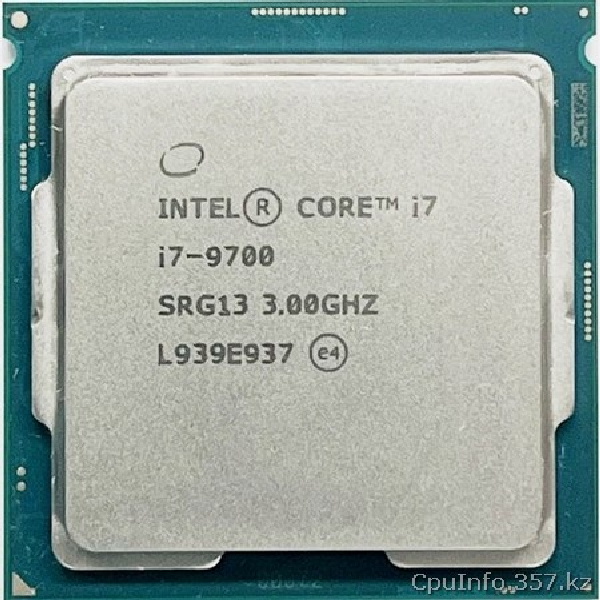

This photograph shows the front of the i7-9700 processor, including its heat spreader and visible model markings. Detailed technical specifications are available on the model page.

Key specifications

Modeli7-9700
SocketLGA1151 V2
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
157E-2146G184 600
158i5-11600T184 020
159i7-8700182 520
160i5-10600T180 540
161i7-9700180 500
162i7-9700F180 500
163E-2136179 880
164i5-11500T177 300
165E-2374G176 660

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i7-9700: front-side photograph and package details

What the processor front shows

This page presents an original front-view photograph of Intel Core i7-9700. On processors with an integrated heat spreader, the metal cap covers much of the package and transfers heat to the cooler. Its markings can help compare a physical sample with a model name, but a photograph cannot establish whether the processor works or is genuine.

Package size, socket and compatibility

Listed package dimensions: 37.5mm x 37.5mm. Socket: LGA1151 V2. The shape of the processor and heat spreader is useful for visual orientation; it is not a substitute for checking mechanical and electrical compatibility. Different Intel sockets may look similar while using different contact arrangements. Consult the motherboard manufacturer's support list before installing this model.

Model specifications at a glance

Physical cores: 8. Logical threads: 8. Base frequency: 3.00 GHz. Maximum Turbo frequency: 4.70 GHz. L3 cache: 12 Mb. Memory support: DDR4-2666 MHz. Manufacturing process: 14 nm. The main specification page provides the complete parameter table, including technologies and other family details. A front-side photo is a supplement to those data rather than a complete identification method.

Heat spreader and cooler installation

When installing i7-9700, keep the contact surfaces clean, use a suitable amount of thermal interface material and mount a cooler designed for LGA1151 V2. Avoid excessive mechanical force. Check the socket for damage and ensure the motherboard and its BIOS support the selected CPU.

Photos, specifications and ranking

Use the dedicated back-view photograph to examine the contact side, and the detailed specifications page to review the platform and compare nearby processors. CPU-Info Benchmark provides a calculated ranking based on model characteristics, not a measurement of this particular processor sample.
