i5-680 - front-side photo

i5-680 - front-side photo
i5-680, front view
Detailed specifications →Back photo →
CPU-Info Benchmark

Intel Core i5-680 ranking

A calculated comparison score based on processor specifications.

Points36 260
Rank555
Compare nine processors

Processor markings

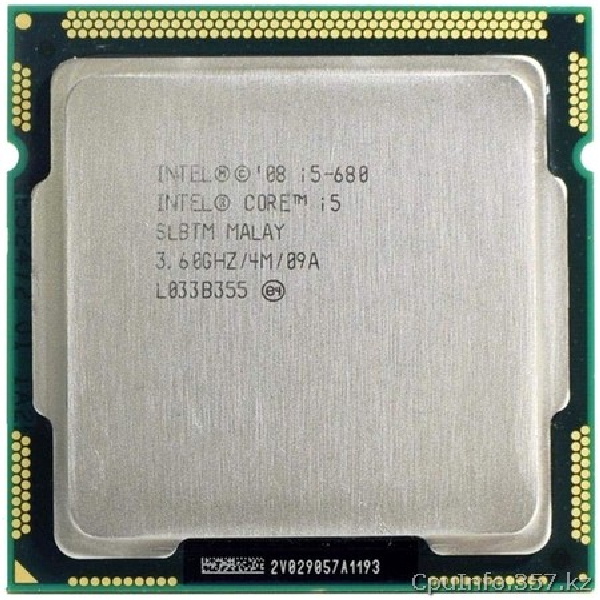

This photograph shows the front of the i5-680 processor, including its heat spreader and visible model markings. Detailed technical specifications are available on the model page.

Key specifications

Modeli5-680
SocketLGA1156
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
551G3900T36 901
552E544036 511
553X336036 511
554E546236 391
555i5-68036 260
556E543035 831
557X323035 831
558X333035 831
559X335035 831

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i5-680: front-side photograph and package details

What the processor front shows

This page presents an original front-view photograph of Intel Core i5-680. On processors with an integrated heat spreader, the metal cap covers much of the package and transfers heat to the cooler. Its markings can help compare a physical sample with a model name, but a photograph cannot establish whether the processor works or is genuine.

Package size, socket and compatibility

Listed package dimensions: 37.5mm x 37.5mm. Socket: LGA1156. The shape of the processor and heat spreader is useful for visual orientation; it is not a substitute for checking mechanical and electrical compatibility. Different Intel sockets may look similar while using different contact arrangements. Consult the motherboard manufacturer's support list before installing this model.

Model specifications at a glance

Physical cores: 2. Logical threads: 4. Base frequency: 3.60 GHz. Maximum Turbo frequency: 3.86 GHz. L3 cache: 4 Mb. Memory support: DDR3 1066/1333 MHz. Manufacturing process: 32 nm. The main specification page provides the complete parameter table, including technologies and other family details. A front-side photo is a supplement to those data rather than a complete identification method.

Heat spreader and cooler installation

When installing i5-680, keep the contact surfaces clean, use a suitable amount of thermal interface material and mount a cooler designed for LGA1156. Avoid excessive mechanical force. Check the socket for damage and ensure the motherboard and its BIOS support the selected CPU.

Photos, specifications and ranking

Use the dedicated back-view photograph to examine the contact side, and the detailed specifications page to review the platform and compare nearby processors. CPU-Info Benchmark provides a calculated ranking based on model characteristics, not a measurement of this particular processor sample.
