X3210 - processor specifications

ProcessorX3210
Base frequency2.13 GHz
SocketLGA775
TDP105 W
CPU-Info Benchmark

Intel Xeon X3210 ranking

A calculated comparison score based on processor specifications.

Points33 711
Rank578
Compare nine processors
At a glance: X3210
Intel Xeon X3210:

Main specifications

Official model name X3210
Manufacturer Intel
Release date (month and year)January 2007
CPU socketLGA775
Transistor count582 million
Package dimensions37.5mm x 37.5mm
Intended useserver computer
Thermal monitoringYes
TDP (thermal design power)105 W
Maximum specified temperature62°C

CPU performance

Processor family Xeon
Code nameKentsfield
Turbo Boost supportYes
Physical cores4
Base clock speed2.13 GHz
Bus speed1066 MHz
Total L2 cache8 Mb
Manufacturing process65 nm

Memory

Supported memory types and speeds DDR2 667/800 MHz DDR3 1066 MHz
Maximum memory capacity4/8 GB

Graphics

Not specified.

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE4.1 , VT-X , EM64T .

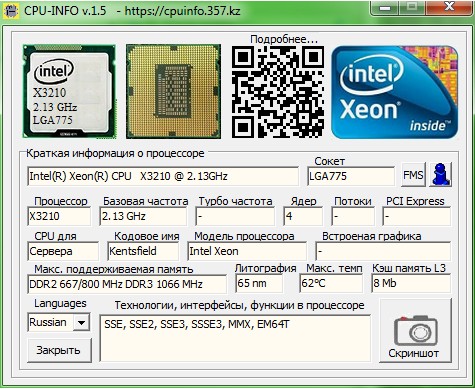

CPU-Info screenshot for X3210

Original CPU-Info screenshot - X3210

Specifications on your phone

QR code for the X3210 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
574i3-212034 171
575i3-212534 171
576i5-65034 020
577G1840T33 901
578X321033 711
579G1820T33 601
580E540533 191
581i3-210033 191
582i3-210533 191

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Xeon X3210: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Xeon X3210 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for X3210 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 33 711 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
