Ultra 5 245KF - processor specifications

ProcessorUltra 5 245KF
Base frequency4.2 GHz
SocketLGA1851
TDP-
CPU-Info Benchmark

Intel Core Ultra 5 245KF ranking

A calculated comparison score based on processor specifications.

Points443 890
Rank17
Compare nine processors
At a glance: Ultra 5 245KF
Intel Core Ultra 5 245KF:

Main specifications

Official model name Ultra 5 245KF
Manufacturer Intel
Release date (month and year)April 2024
CPU socketLGA1851
Package dimensions45 mm x 35 mm
Intended usedesktop computer
Thermal monitoringYes
PBP (Processor Base Power)125 W
MTP (Max Turbo Power)159 W
Maximum specified temperature105°C

CPU performance

Processor family Ultra 5
Code nameArrow Lake
Turbo Boost supportYes
Physical cores14
Base clock speed4.2 GHz
Maximum Turbo frequency5.2 GHz
L2 cache26 MB
Total L3 cache24 MB
Manufacturing process3 nm

Memory

Supported memory types and speeds DDR5 6400 MHz
Maximum memory capacity192 GB

Graphics

Not specified.

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , AVX , AVX2 , FMA3 , SHA , EPT , VT-D , EM64T , SecureKey , TDT , ISM , OS Guard , Boot Guard , AI Boost , WSE , Thunderbolt .

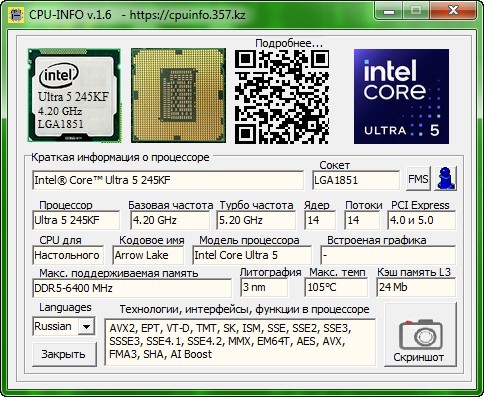

CPU-Info screenshot for Ultra 5 245KF

Original CPU-Info screenshot - Ultra 5 245KF

Specifications on your phone

QR code for the Ultra 5 245KF specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
13i7-13700KF454 546
14i9-14900451 740
15i9-14900F451 740
16Ultra 5 245K443 890
17Ultra 5 245KF443 890
18i9-12900KS437 696
19i9-13900430 740
20i9-13900F430 740
21i5-14600K425 870

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core Ultra 5 245KF: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Core Ultra 5 245KF is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for Ultra 5 245KF includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 443 890 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
