Ultra 5 245 - processor specifications

ProcessorUltra 5 245
Base frequency3.5 GHz
SocketLGA1851
TDP-
CPU-Info Benchmark

Intel Core Ultra 5 245 ranking

A calculated comparison score based on processor specifications.

Points407 200
Rank30
Compare nine processors
At a glance: Ultra 5 245
Intel Core Ultra 5 245:

Main specifications

Official model name Ultra 5 245
Manufacturer Intel
Release date (month and year)January 2025
CPU socketLGA1851
Package dimensions45 mm x 35 mm
Intended usedesktop computer
Thermal monitoringYes
PBP (Processor Base Power)65 W
MTP (Max Turbo Power)121 W
Maximum specified temperature105°C

CPU performance

Processor family Ultra 5
Code nameArrow Lake
Turbo Boost supportYes
Physical cores14
Base clock speed3.5 GHz
Maximum Turbo frequency5.1 GHz
L2 cache26 MB
Total L3 cache24 MB
Manufacturing process3 nm

Memory

Supported memory types and speeds DDR5 6400 MHz
Maximum memory capacity192 GB

Graphics

Integrated graphics Intel Graphics
Integrated GPU base frequency300 MHz
Integrated GPU maximum frequency1.9 GHz
PCI Express version4.0 and 5.0
Maximum PCI Express lanes24
DirectX support12
OpenGL support4.5
OpenCL support3.0
QSV (Quick Sync Video)Yes
Maximum HDMI resolution3840x2160 and 7680x4320
HDMI refresh rate at maximum resolution 60Hz
Maximum DisplayPort resolution7680x4320
DisplayPort refresh rate at maximum resolution 60Hz
Maximum eDisplayPort resolution3840x2160
eDisplayPort refresh rate at maximum resolution 60Hz

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , AVX , AVX2 , FMA3 , SHA , EPT , VT-D , EM64T , SecureKey , TDT , ISM , OS Guard , Boot Guard , AI Boost , WSE , Thunderbolt .

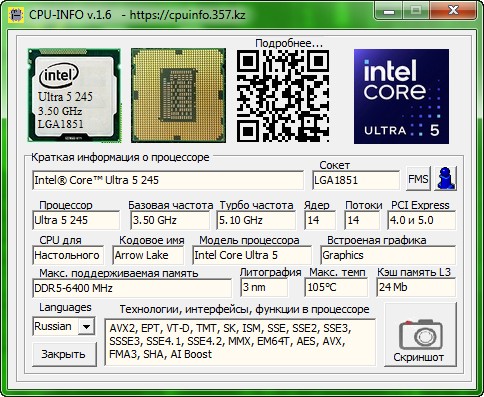

CPU-Info screenshot for Ultra 5 245

Original CPU-Info screenshot - Ultra 5 245

Specifications on your phone

QR code for the Ultra 5 245 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
26i9-12900KF419 458
27i7-14700415 958
28i7-14700F415 958
29Ultra 9 285T410 500
30Ultra 5 245407 200
31i5-13600K404 870
32i5-13600KF404 870
33Ultra 5 235401 180
34i5-14600375 904

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core Ultra 5 245: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Core Ultra 5 245 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for Ultra 5 245 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 407 200 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
