Ultra 5 230F - processor specifications

ProcessorUltra 5 230F
Base frequency3.4 GHz
SocketLGA1851
TDP-
CPU-Info Benchmark

Intel Core Ultra 5 230F ranking

A calculated comparison score based on processor specifications.

Points342 700
Rank46
Compare nine processors
At a glance: Ultra 5 230F
Intel Core Ultra 5 230F:

Main specifications

Official model name Ultra 5 230F
Manufacturer Intel
Release date (month and year)January 2025
CPU socketLGA1851
Package dimensions45 mm x 35 mm
Intended usedesktop computer
Thermal monitoringYes
PBP (Processor Base Power)65 W
MTP (Max Turbo Power)121 W
Maximum specified temperature105°C

CPU performance

Processor family Ultra 5
Code nameArrow Lake
Turbo Boost supportYes
Physical cores10
Base clock speed3.4 GHz
Maximum Turbo frequency5.0 GHz
L2 cache22 MB
Total L3 cache24 MB
Manufacturing process3 nm

Memory

Supported memory types and speeds DDR5 6400 MHz
Maximum memory capacity192 GB

Graphics

Not specified.

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , AVX , AVX2 , FMA3 , SHA , EPT , VT-D , EM64T , SecureKey , TDT , ISM , OS Guard , Boot Guard , AI Boost , WSE , Thunderbolt .

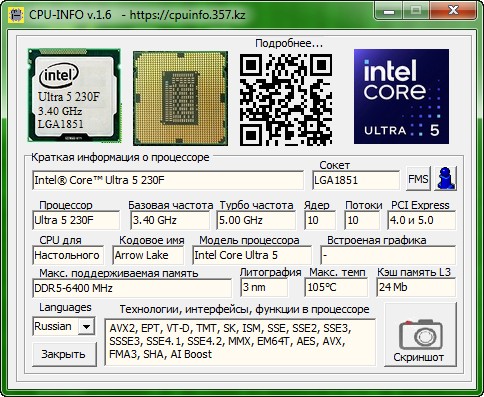

CPU-Info screenshot for Ultra 5 230F

Original CPU-Info screenshot - Ultra 5 230F

Specifications on your phone

QR code for the Ultra 5 230F specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
42i5-13600354 904
43Ultra 7 265T351 400
44i9-14900T344 532
45i9-13900T342 732
46Ultra 5 230F342 700
47Ultra 5 245T341 340
48i5-13500340 800
49Ultra 5 235T340 340
50i7-14700T337 374

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core Ultra 5 230F: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Core Ultra 5 230F is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for Ultra 5 230F includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 342 700 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
