Q9505S - processor specifications

ProcessorQ9505S
Base frequency2.83 GHz
SocketLGA775
TDP65 W
CPU-Info Benchmark

Intel Core 2 Quad Q9505S ranking

A calculated comparison score based on processor specifications.

Points57 821
Rank438
Compare nine processors
At a glance: Q9505S
Intel Core 2 Quad Q9505S:

Main specifications

Official model name Q9505S
Manufacturer Intel
Release date (month and year)March 2009
CPU socketLGA775
Transistor count456 million
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
Thermal monitoringYes
TDP (thermal design power)65 W
Maximum specified temperature76°C

CPU performance

Processor family Core2 Quad
Code nameYorkfield
Turbo Boost supportYes
Physical cores4
Base clock speed2.83 GHz
Bus speed1333 MHz
Total L2 cache6 Mb
Manufacturing process45 nm

Memory

Supported memory types and speeds DDR2 667/800 MHz DDR3 1066 MHz
Maximum memory capacity4/8 GB

Graphics

Not specified.

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE4.1 , VT-X , EPT , VT-D , TXT , EM64T .

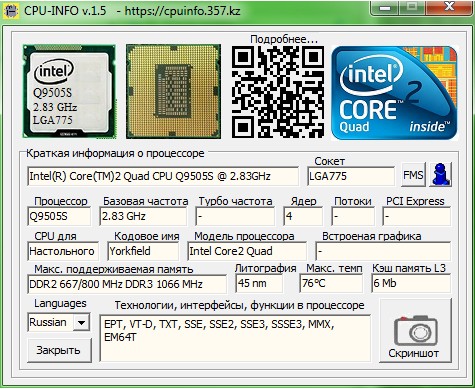

CPU-Info screenshot for Q9505S

Original CPU-Info screenshot - Q9505S

Specifications on your phone

QR code for the Q9505S specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
434Q950058 021
435Q950558 021
436Q955058 021
437X344058 004
438Q9505S57 821
439Q9550S57 821
440i5-2500K57 550
441Q670057 341
442Q840057 341

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core 2 Quad Q9505S: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Core 2 Quad Q9505S is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for Q9505S includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 57 821 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
