i7-860S - processor specifications

Processori7-860S
Base frequency2.53 GHz
SocketLGA1156
TDP82 W
CPU-Info Benchmark

Intel Core i7-860S ranking

A calculated comparison score based on processor specifications.

Points67 104
Rank373
Compare nine processors
At a glance: i7-860S
Intel Core i7-860S:

Main specifications

Official model name i7-860S
Manufacturer Intel
Release date (month and year)January 2010
CPU socketLGA1156
Transistor count774 million
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
TDP (thermal design power)82 W
Maximum specified temperature65°C

CPU performance

Processor family Core i7
Code nameLynnfield
Turbo Boost supportYes
Physical cores4
Logical threads8
Base clock speed2.53 GHz
Maximum Turbo frequency3.46 GHz
Hyper-Threading technologyYes
Bus speed2.5 GT/s
Total L3 cache8 Mb
Manufacturing process45 nm

Memory

Supported memory types and speeds DDR3 1066/1333 MHz
Maximum memory capacity16 GB
Maximum memory bandwidth21 GB/s

Graphics

PCI Express version2.0
Maximum PCI Express lanes16

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE4.1 , VT-X , EPT , VT-D , TXT , EM64T .

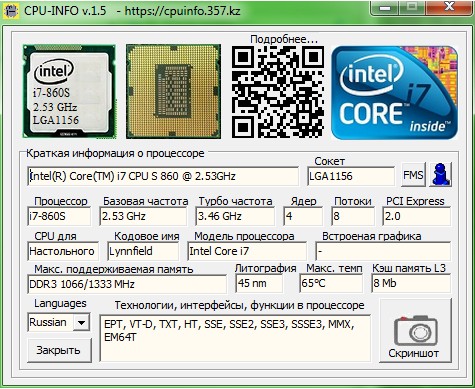

CPU-Info screenshot for i7-860S

Original CPU-Info screenshot - i7-860S

Specifications on your phone

QR code for the i7-860S specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
369G592068 361
370G590068 061
371L543067 751
372X347067 424
373i7-860S67 104
374i5-446067 000
375E3-1225 V266 900
376G5900T66 861
377i5-4460S66 800

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i7-860S: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Core i7-860S is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for i7-860S includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 67 104 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
