i7-7700 - processor specifications

Processori7-7700
Base frequency3.60 GHz
SocketLGA1151
TDP65 W
CPU-Info Benchmark

Intel Core i7-7700 ranking

A calculated comparison score based on processor specifications.

Points120 980
Rank210
Compare nine processors
At a glance: i7-7700
Intel Core i7-7700:
Socket: LGA1151.
Family: Core i7 ?.
Code name: Kaby Lake.
Release: January 2017.
Physical cores: 4.
Threads: 8.
Base speed: 3.60 GHz.
Maximum Turbo: 4.20 GHz.
Memory: DDR3-1333/1600, DDR4-2133/2400 MHz.

Main specifications

Official model name i7-7700
Manufacturer Intel
Release date (month and year)January 2017
CPU socketLGA1151
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
Thermal monitoringYes
TDP (thermal design power)65 W
Maximum specified temperature100°C

CPU performance

Processor family Core i7
Code nameKaby Lake
Turbo Boost supportYes
Physical cores4
Logical threads8
Base clock speed3.60 GHz
Maximum Turbo frequency4.20 GHz
Hyper-Threading technologyYes
Bus speed8 GT/s
Total L3 cache8 Mb
Manufacturing process14 nm

Memory

Supported memory types and speeds DDR3-1333/1600, DDR4-2133/2400 MHz
Maximum memory capacity64 GB
Optane Memory SupportedYes

Graphics

Integrated graphics Intel HD Graphics 630
Integrated GPU base frequency350 MHz
Integrated GPU maximum frequency1.15 GHz
PCI Express version3.0
Maximum PCI Express lanes16
DirectX support12
OpenGL support4.5
4K supportYes
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
InTru 3DYes
Graph Max Mem64 GB
Maximum HDMI resolution4096x2304
HDMI refresh rate at maximum resolution24Hz
Maximum DisplayPort resolution4096x2304
DisplayPort refresh rate at maximum resolution60Hz
Maximum eDisplayPort resolution4096x2304
eDisplayPort refresh rate at maximum resolution60Hz

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , AVX , AVX2 , TSX-NI , EPT , VT-D , TXT , EM64T , SecureKey , OS Guard .

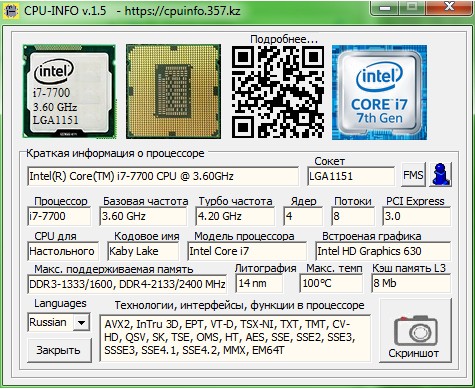

CPU-Info screenshot for i7-7700

Original CPU-Info screenshot - i7-7700

Specifications on your phone

QR code for the i7-7700 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
206i5-9600T125 750
207i5-8400125 600
208E3-1285 V6123 380
209i5-9500T122 800
210i7-7700120 980
211E3-1280 V6119 020
212E3-1270 V6118 340
213E3-1275 V6118 340
214i3-9350K118 050

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i7-7700: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Core i7-7700 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Code name: Kaby Lake. Release: January 2017. Socket: LGA1151. Package: 37.5mm x 37.5mm. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Physical cores: 4. Logical threads: 8. Base frequency: 3.60 GHz. Maximum Turbo frequency: 4.20 GHz. L3 cache: 8 Mb. Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

Memory support: DDR3-1333/1600, DDR4-2133/2400 MHz. Maximum memory: 64 GB. Integrated GPU: Intel HD Graphics 630. PCI Express: 3.0. Manufacturing process: 14 nm. TDP: 65 W. A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for i7-7700 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 120 980 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
