i5-4590T - processor specifications

Processori5-4590T
Base frequency2.00 GHz
SocketLGA1150
TDP35 W
CPU-Info Benchmark

Intel Core i5-4590T ranking

A calculated comparison score based on processor specifications.

Points62 400
Rank401
Compare nine processors
At a glance: i5-4590T
Intel Core i5-4590T:

Main specifications

Official model name i5-4590T
Manufacturer Intel
Release date (month and year)February 2014
CPU socketLGA1150
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
Thermal monitoringYes
TDP (thermal design power)35 W
Maximum specified temperature66°C

CPU performance

Processor family Core i5
Code nameHaswell
Turbo Boost supportYes
Physical cores4
Logical threads4
Base clock speed2.00 GHz
Maximum Turbo frequency3.00 GHz
Bus speed5 GT/s
Total L3 cache6 Mb
Manufacturing process22 nm

Memory

Supported memory types and speeds DDR3-1333/1600 MHz
Maximum memory capacity32 GB
Maximum memory bandwidth25.6 GB/s

Graphics

Integrated graphics Intel HD Graphics 4600
Integrated GPU base frequency350 MHz
Integrated GPU maximum frequency1.15 GHz
PCI Express version3.0
Maximum PCI Express lanes16
DirectX support11.2/12
OpenGL support4.3
FDI graphics interfaceYes
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
InTru 3DYes
Graph Max Mem2 GB
Maximum HDMI resolution4096x2304
HDMI refresh rate at maximum resolution24Hz
Maximum DisplayPort resolution3840x2160
DisplayPort refresh rate at maximum resolution60Hz
Maximum eDisplayPort resolution3840x2160
eDisplayPort refresh rate at maximum resolution60Hz

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , AES , VT-X , AVX , AVX2 , EPT , VT-D , TXT , EM64T , SecureKey , OS Guard .

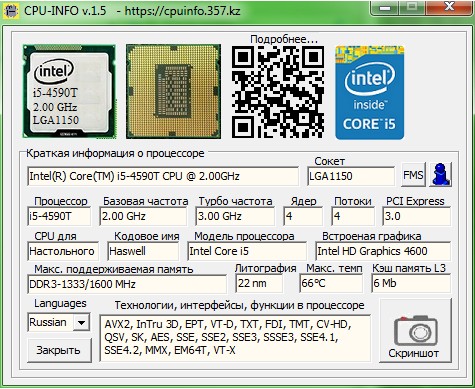

CPU-Info screenshot for i5-4590T

Original CPU-Info screenshot - i5-4590T

Specifications on your phone

QR code for the i5-4590T specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
397i5-355063 500
398i5-3550S63 300
399i5-347062 500
400L541062 471
401i5-4590T62 400
402i5-3470S62 300
403i5-3475S62 300
404i3-610062 131
405G5500T62 121

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i5-4590T: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Core i5-4590T is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for i5-4590T includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 62 400 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
