i5-10600K - processor specifications

Processori5-10600K
Base frequency4.10 GHz
SocketLGA1200
TDP125 W
CPU-Info Benchmark

Intel Core i5-10600K ranking

A calculated comparison score based on processor specifications.

Points229 810
Rank109
Compare nine processors
At a glance: i5-10600K
Intel Core i5-10600K:

Main specifications

Official model name i5-10600K
Manufacturer Intel
Release date (month and year)February 2020
CPU socketLGA1200
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
Thermal monitoringYes
TDP (thermal design power)125 W
Maximum specified temperature100°C

CPU performance

Processor family Core i5
Code nameComet Lake
Turbo Boost supportYes
Physical cores6
Logical threads12
Base clock speed4.10 GHz
Maximum Turbo frequency4.80 GHz
Unlocked multiplierYes
Hyper-Threading technologyYes
Bus speed8 GT/s
Total L3 cache12 Mb
Manufacturing process14 nm

Memory

Supported memory types and speeds DDR4-2666 MHz
Maximum memory capacity128 GB
Maximum memory bandwidth41.6 GB/s
Optane Memory SupportedYes

Graphics

Integrated graphics Intel UHD Graphics 630
Integrated GPU base frequency350 MHz
Integrated GPU maximum frequency1.20 GHz
PCI Express version3.0
Maximum PCI Express lanes16
DirectX support12
OpenGL support4.5
4K supportYes
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
InTru 3DYes
Graph Max Mem64 GB
Maximum HDMI resolution4096x2160
HDMI refresh rate at maximum resolution30Hz
Maximum DisplayPort resolution4096x2304
DisplayPort refresh rate at maximum resolution60Hz
Maximum eDisplayPort resolution4096x2304
eDisplayPort refresh rate at maximum resolution60Hz

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , AVX , AVX2 , EPT , VT-D , TXT , EM64T , SecureKey , OS Guard .

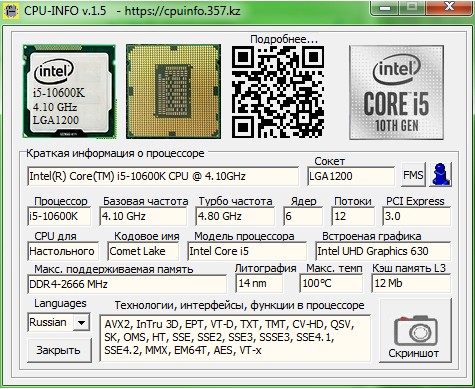

CPU-Info screenshot for i5-10600K

Original CPU-Info screenshot - i5-10600K

Specifications on your phone

QR code for the i5-10600K specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
105i7-10700F238 668
106E-2278G235 628
107i3-14100T235 380
108i9-9900229 852
109i5-10600K229 810
110i5-10600KF229 810
111W-1350229 380
112i5-12400228 650
113i5-12400F228 650

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i5-10600K: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Core i5-10600K is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for i5-10600K includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 229 810 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
