G6900 - processor specifications

ProcessorG6900
Base frequency3.40 GHz
SocketLGA1700
TDP-
CPU-Info Benchmark

Intel Celeron G6900 ranking

A calculated comparison score based on processor specifications.

Points91 221
Rank278
Compare nine processors
At a glance: G6900
Intel Celeron G6900:

Main specifications

Official model name G6900
Manufacturer Intel
Release date (month and year)January 2022
CPU socketLGA1700
Package dimensions45.0 mm x 37.5 mm
Intended usedesktop computer
Thermal monitoringYes
PBP (Processor Base Power)46 W
Maximum specified temperature100°C

CPU performance

Processor family Celeron
Code nameAlder Lake
Turbo Boost supportYes
Physical cores2
Logical threads2
Base clock speed3.40 GHz
L2 cache per core2.5 MB
Total L3 cache4 Mb
Manufacturing process10 nm

Memory

Supported memory types and speeds DDR4-3200 MHz, DDR5-4800 MHz
Maximum memory capacity128 GB
Maximum memory bandwidth76.8 GB/s
Optane Memory SupportedYes

Graphics

Integrated graphics Intel UHD Graphics 710
Integrated GPU base frequency300 MHz
Integrated GPU maximum frequency1.30 GHz
PCI Express version4.0 and 5.0
Maximum PCI Express lanes20
DirectX support12
OpenGL support4.5
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
Maximum HDMI resolution4096x2160
HDMI refresh rate at maximum resolution 60Hz
Maximum DisplayPort resolution7680x4320
DisplayPort refresh rate at maximum resolution 60Hz
Maximum eDisplayPort resolution5120x3200
eDisplayPort refresh rate at maximum resolution 120Hz

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , AES , VT-X , AVX , AVX2 , SHA , EPT , VT-D , EM64T , SecureKey , OS Guard .

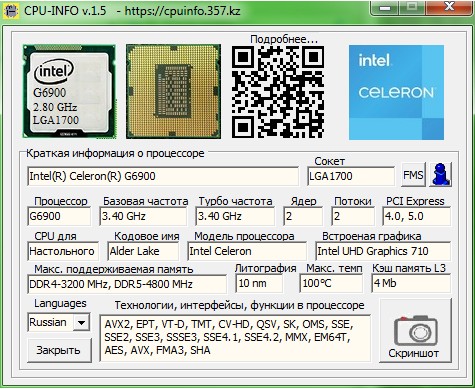

CPU-Info screenshot for G6900

Original CPU-Info screenshot - G6900

Specifications on your phone

QR code for the G6900 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
274E3-1286L V392 060
275i7-3770K91 850
276i7-4790T91 760
277E3-1220 V691 500
278G690091 221
279E3-1290 V290 660
280i7-377090 620
281i5-750090 500
282E3-1230 V390 440

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Celeron G6900: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Celeron G6900 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for G6900 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 91 221 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
