G645T - processor specifications

ProcessorG645T
Base frequency2.50 GHz
SocketLGA1155
TDP35 W
CPU-Info Benchmark

Intel Pentium G645T ranking

A calculated comparison score based on processor specifications.

Points24 151
Rank599
Compare nine processors
At a glance: G645T
Intel Pentium G645T:

Main specifications

Official model name G645T
Manufacturer Intel
Release date (month and year)March 2012
CPU socketLGA1155
Package dimensions37.5mm x 37.5mm
Intended usedesktop computer
Thermal monitoringYes
TDP (thermal design power)35 W
Maximum specified temperature65°C

CPU performance

Processor family Pentium
Code nameSandy Bridge
Turbo Boost supportYes
Physical cores2
Logical threads2
Base clock speed2.50 GHz
Bus speed5 GT/s
Total L3 cache3 Mb
Manufacturing process32 nm

Memory

Supported memory types and speeds DDR3 1066 MHz
Maximum memory capacity32 GB
Maximum memory bandwidth17 GB/s

Graphics

Integrated graphics Intel HD Graphics
Integrated GPU base frequency650 MHz
Integrated GPU maximum frequency1.10 GHz
PCI Express version2.0
Maximum PCI Express lanes16
FDI graphics interfaceYes

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE4.1 , VT-X , EM64T .

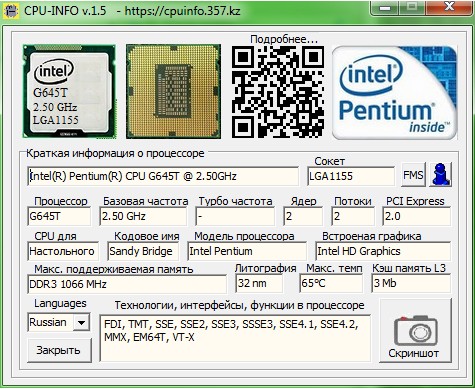

CPU-Info screenshot for G645T

Original CPU-Info screenshot - G645T

Specifications on your phone

QR code for the G645T specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
595G84025 801
596G63025 451
597G62025 101
598G860T24 501
599G645T24 151
600G640T23 801
601G630T23 451
602G620T23 101
603G55522 101

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Pentium G645T: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Pentium G645T is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for G645T includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 24 151 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
