E3-1271 V3 - processor specifications

ProcessorE3-1271 V3
Base frequency3.60 GHz
SocketLGA1150
TDP80 W
CPU-Info Benchmark

Intel Xeon E3-1271 V3 ranking

A calculated comparison score based on processor specifications.

Points95 480
Rank255
Compare nine processors
At a glance: E3-1271 V3
Intel Xeon E3-1271 V3:

Main specifications

Official model name E3-1271 V3
Manufacturer Intel
Release date (month and year)February 2014
CPU socketLGA1150
Package dimensions37.5mm x 37.5mm
Intended useserver computer
Thermal monitoringYes
TDP (thermal design power)80 W
Maximum specified temperature65°C

CPU performance

Processor family Xeon
Code nameHaswell
Turbo Boost supportYes
Physical cores4
Logical threads8
Base clock speed3.60 GHz
Maximum Turbo frequency4.00 GHz
Hyper-Threading technologyYes
Bus speed5 GT/s
Total L3 cache8 Mb
Manufacturing process22 nm

Memory

Supported memory types and speeds DDR3-1333/1600 MHz
Maximum memory capacity32 GB
Maximum memory bandwidth25.6 GB/s
ECC memory supportYes

Graphics

PCI Express version3.0
Maximum PCI Express lanes16

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , AES , VT-X , AVX , AVX2 , TSX-NI , EPT , VT-D , TXT , EM64T , SecureKey , OS Guard .

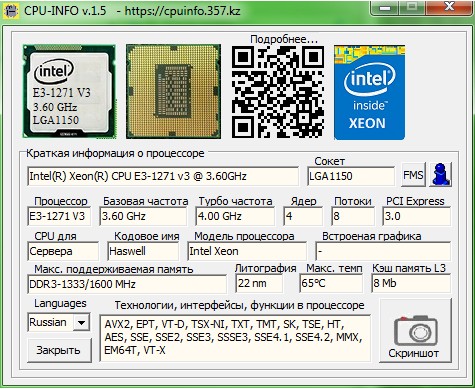

CPU-Info screenshot for E3-1271 V3

Original CPU-Info screenshot - E3-1271 V3

Specifications on your phone

QR code for the E3-1271 V3 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
251E3-1281 V397 160
252E3-1286 V397 160
253i7-477097 120
254i7-4790S96 560
255E3-1271 V395 480
256E3-1276 V395 480
257E3-1280 V395 480
258E3-1285 V395 480
259i5-7600K95 050

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Xeon E3-1271 V3: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Xeon E3-1271 V3 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for E3-1271 V3 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 95 480 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
