E3-1268L V3 - processor specifications

ProcessorE3-1268L V3
Base frequency2.30 GHz
SocketLGA1150
TDP45 W
CPU-Info Benchmark

Intel Xeon E3-1268L V3 ranking

A calculated comparison score based on processor specifications.

Points78 940
Rank325
Compare nine processors
At a glance: E3-1268L V3
Intel Xeon E3-1268L V3:

Main specifications

Official model name E3-1268L V3
Manufacturer Intel
Release date (month and year)February 2013
CPU socketLGA1150
Package dimensions37.5mm x 37.5mm
Intended useembedded computer
Thermal monitoringYes
TDP (thermal design power)45 W
Maximum specified temperature65°C

CPU performance

Processor family Xeon
Code nameHaswell
Turbo Boost supportYes
Physical cores4
Logical threads8
Base clock speed2.30 GHz
Maximum Turbo frequency3.30 GHz
Hyper-Threading technologyYes
Bus speed5 GT/s
Total L3 cache8 Mb
Manufacturing process22 nm

Memory

Supported memory types and speeds DDR3 1333/1600 MHz
Maximum memory capacity32 GB
Maximum memory bandwidth25.6 GB/s
ECC memory supportYes

Graphics

Integrated graphics Intel HD Graphics 4600
Integrated GPU base frequency350 MHz
Integrated GPU maximum frequency1.00 GHz
PCI Express version3.0
Maximum PCI Express lanes16
FDI graphics interfaceYes
Clear Video HD technologyYes
QSV (Quick Sync Video)Yes
InTru 3DYes

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE3 , SSE4.1 , AES , VT-X , AVX , AVX2 , TSX-NI , EPT , VT-D , TXT , EM64T , SecureKey .

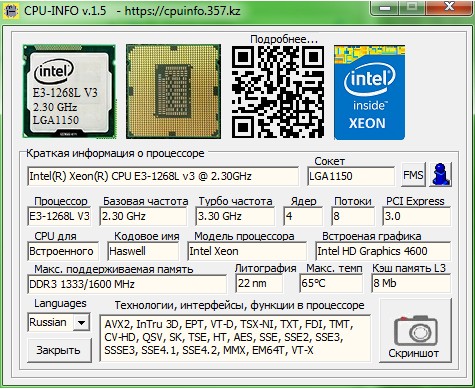

CPU-Info screenshot for E3-1268L V3

Original CPU-Info screenshot - E3-1268L V3

Specifications on your phone

QR code for the E3-1268L V3 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
321G6505T79 421
322E3-127079 120
323E3-127579 120
324i5-640079 000
325E3-1268L V378 940
326G6405T78 861
327G6500T78 861
328i7-2600S78 840
329G6400T78 301

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Xeon E3-1268L V3: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Xeon E3-1268L V3 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for E3-1268L V3 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 78 940 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
