E3-1230 V2 - processor specifications

ProcessorE3-1230 V2
Base frequency3.30 GHz
SocketLGA1155
TDP69 W
CPU-Info Benchmark

Intel Xeon E3-1230 V2 ranking

A calculated comparison score based on processor specifications.

Points83 940
Rank305
Compare nine processors
At a glance: E3-1230 V2
Intel Xeon E3-1230 V2:

Main specifications

Official model name E3-1230 V2
Manufacturer Intel
Release date (month and year)February 2012
CPU socketLGA1155
Package dimensions37.5mm x 37.5mm
Intended useserver computer
Thermal monitoringYes
TDP (thermal design power)69 W
Maximum specified temperature65°C

CPU performance

Processor family Xeon
Code nameIvy Bridge
Turbo Boost supportYes
Physical cores4
Logical threads8
Base clock speed3.30 GHz
Maximum Turbo frequency3.70 GHz
Hyper-Threading technologyYes
Bus speed5 GT/s
Total L3 cache8 Mb
Manufacturing process22 nm

Memory

Supported memory types and speeds DDR3 1333/1600 MHz
Maximum memory capacity32 GB
Maximum memory bandwidth25.6 GB/s
ECC memory supportYes

Graphics

PCI Express version3.0

Additional specifications

Supported technologies, interfaces and instruction sets MMX , SSE , SSE2 , SSE4.1 , AES , VT-X , AVX , EPT , VT-D , TXT , EM64T .

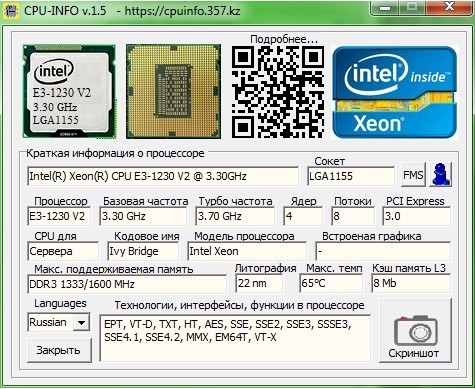

CPU-Info screenshot for E3-1230 V2

Original CPU-Info screenshot - E3-1230 V2

Specifications on your phone

QR code for the E3-1230 V2 specifications page

Scan the QR code to open this page on your phone.

CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
301i5-660085 000
302i5-7500T84 900
303E3-1265L V384 300
304G660583 941
305E3-1230 V283 940
306i7-2600K83 670
307G650583 381
308G660083 381
309i7-260083 120

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Xeon E3-1230 V2: specifications and CPU-Info Benchmark

Model overview and processor family

Intel Xeon E3-1230 V2 is listed in the CPU-Info reference with technical specifications and original photographs of its front and back. Socket: the socket listed in the specification table. The full model designation matters: processors with similar names can differ in packaging, clock speeds and supported motherboard platforms. Refer to the table on this page for the manufacturer-specified characteristics of this exact model.

Cores, threads, clock speeds and cache

Core count describes physical computing resources, while thread count describes the logical execution contexts exposed to software. A base clock and a maximum boost clock describe different operating conditions, not a constant speed. Comparing these figures together with the cache and processor family is more useful than looking at only one number.

Memory, integrated graphics and the platform

A processor must be paired with a motherboard that supports its specific socket, firmware and memory configuration. A matching connector alone does not guarantee electrical or BIOS compatibility. When building or upgrading a computer, check the motherboard vendor's CPU support list and the specifications of the memory you plan to install.

Front and back photographs, screenshot and QR code

The CPU-Info page for E3-1230 V2 includes dedicated images of the processor's front and back surfaces, an original screenshot from the utility and a QR code. These resources can help identify the model visually and share a reference from a phone or tablet. Photographs are informative but cannot by themselves establish authenticity, electrical condition or compatibility.

CPU-Info Benchmark comparison and interpretation

The displayed CPU-Info Benchmark score is 83 940 points. CPU-Info Benchmark compares Intel processor models using a calculated score derived from published characteristics. The nearby-model comparison highlights the selected CPU in red and other entries in green. It is a reference ranking, not a measured benchmark result from your own computer; actual application performance also depends on the software, cooling, platform and system configuration.
