q9300 - back-side photo

q9300 - back-side photo
q9300, back view
Detailed specifications →Front photo →
CPU-Info Benchmark

Intel Core 2 Quad Q9300 ranking

A calculated comparison score based on processor specifications.

Points56 701
Rank451
Compare nine processors

Processor contact side

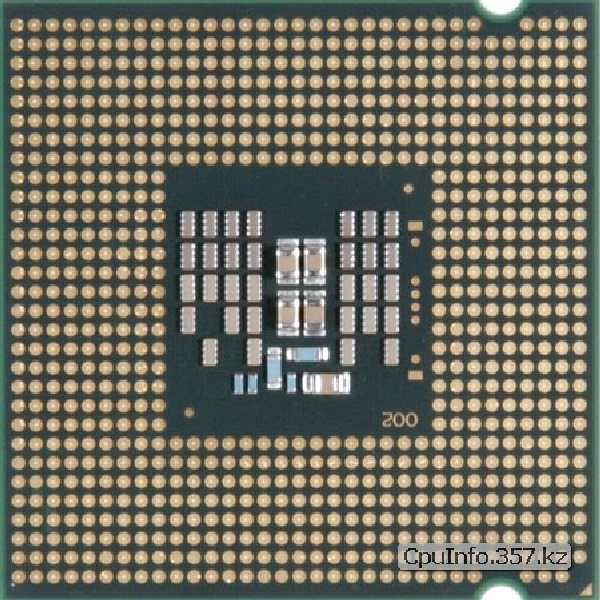

This photograph shows the back of the q9300 processor, including its contact side and substrate components. Detailed technical specifications are available on the model page.

Key specifications

Modelq9300
SocketLGA775
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
447Q9400S57 141
448i5-250057 000
449i5-2500S56 800
450Q830056 701
451Q930056 701
452Q660056 301
453L342656 148
454Q820056 021
455Q8200S55 821

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core 2 Quad Q9300: back-side photograph and contacts

Examining the contact side

The back-view photograph of Intel Core 2 Quad Q9300 shows the processor substrate and its electrical contact area. Package and contact designs vary by processor family. Visual inspection can reveal obvious contamination or mechanical damage, but it cannot confirm that every connection works correctly or that the processor will initialize in a computer.

Why the socket matters

Specified socket: LGA775. Package dimensions: 37.5mm x 37.5mm. Processors from different Intel families can share similar exterior dimensions without being interchangeable. Always compare the board socket, keying, supported CPU list and BIOS requirements. Do not attempt to install a processor using force when alignment or compatibility is uncertain.

Safe inspection before installation

Before fitting q9300, inspect the motherboard socket and the processor contact surfaces under good lighting. Avoid touching exposed contacts unnecessarily. Check for contamination, damaged pads, bent socket contacts and signs of prior repairs. Follow suitable electrostatic-discharge precautions when handling loose PC components.

How contacts relate to CPU specifications

Physical cores: 4. Base frequency: 2.50 GHz. Supported memory: DDR2 667/800 MHz DDR3 1066 MHz. The electrical interface connects the processor to motherboard power, memory and communication signals. Published model specifications tell you which platform to use; the photograph only illustrates the package and its physical connection surface.

Using the photograph for comparison

Compare this image with the front-side photograph and the detailed specification table for q9300. The reference also provides CPU-Info Benchmark scores and neighboring processors. These calculated results help organize model comparisons but do not constitute an on-device performance test or a diagnosis of a processor's condition.
