i7-4770T - back-side photo

i7-4770T - back-side photo
i7-4770T, back view
Detailed specifications →Front photo →
CPU-Info Benchmark

Intel Core i7-4770T ranking

A calculated comparison score based on processor specifications.

Points88 400
Rank287
Compare nine processors

Processor contact side

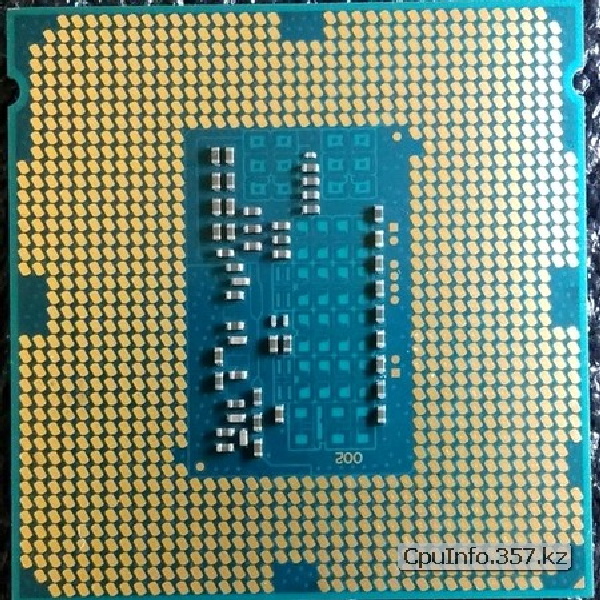

This photograph shows the back of the i7-4770T processor, including its contact side and substrate components. Detailed technical specifications are available on the model page.

Key specifications

Modeli7-4770T
SocketLGA1150
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
283E3-1285L V390 380
284E3-1240L V589 580
285E3-1280 V288 980
286i5-7600T88 900
287i7-4770T88 400
288i7-3770S88 380
289G6900T88 221
290E3-1275L V387 660
291E3-1225 V587 600

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i7-4770T: back-side photograph and contacts

Examining the contact side

The back-view photograph of Intel Core i7-4770T shows the processor substrate and its electrical contact area. Package and contact designs vary by processor family. Visual inspection can reveal obvious contamination or mechanical damage, but it cannot confirm that every connection works correctly or that the processor will initialize in a computer.

Why the socket matters

Specified socket: the socket listed in the specification table. Processors from different Intel families can share similar exterior dimensions without being interchangeable. Always compare the board socket, keying, supported CPU list and BIOS requirements. Do not attempt to install a processor using force when alignment or compatibility is uncertain.

Safe inspection before installation

Before fitting i7-4770T, inspect the motherboard socket and the processor contact surfaces under good lighting. Avoid touching exposed contacts unnecessarily. Check for contamination, damaged pads, bent socket contacts and signs of prior repairs. Follow suitable electrostatic-discharge precautions when handling loose PC components.

How contacts relate to CPU specifications

The electrical interface connects the processor to motherboard power, memory and communication signals. Published model specifications tell you which platform to use; the photograph only illustrates the package and its physical connection surface.

Using the photograph for comparison

Compare this image with the front-side photograph and the detailed specification table for i7-4770T. The reference also provides CPU-Info Benchmark scores and neighboring processors. These calculated results help organize model comparisons but do not constitute an on-device performance test or a diagnosis of a processor's condition.
