i5-8600 - back-side photo

i5-8600 - back-side photo
i5-8600, back view
Detailed specifications →Front photo →
CPU-Info Benchmark

Intel Core i5-8600 ranking

A calculated comparison score based on processor specifications.

Points131 450
Rank200
Compare nine processors

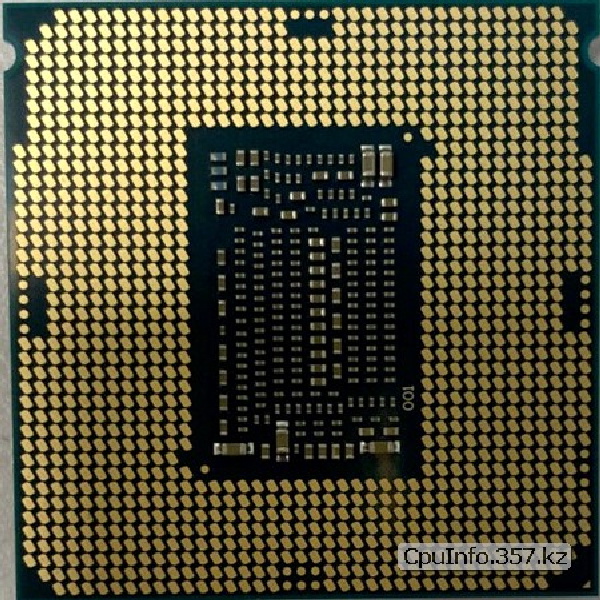

Processor contact side

This photograph shows the back of the i5-8600 processor, including its contact side and substrate components. Detailed technical specifications are available on the model page.

Key specifications

Modeli5-8600
SocketLGA1151 V2
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
196i5-9400134 050
197i5-9400F134 050
198i3-10105T132 900
199i3-10100T131 900
200i5-8600131 450
201E-2174G129 840
202i7-7700K128 610
203i5-8500128 500
204E-2144G126 480

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i5-8600: back-side photograph and contacts

Examining the contact side

The back-view photograph of Intel Core i5-8600 shows the processor substrate and its electrical contact area. Package and contact designs vary by processor family. Visual inspection can reveal obvious contamination or mechanical damage, but it cannot confirm that every connection works correctly or that the processor will initialize in a computer.

Why the socket matters

Specified socket: LGA1151 V2. Package dimensions: 37.5mm x 37.5mm. Processors from different Intel families can share similar exterior dimensions without being interchangeable. Always compare the board socket, keying, supported CPU list and BIOS requirements. Do not attempt to install a processor using force when alignment or compatibility is uncertain.

Safe inspection before installation

Before fitting i5-8600, inspect the motherboard socket and the processor contact surfaces under good lighting. Avoid touching exposed contacts unnecessarily. Check for contamination, damaged pads, bent socket contacts and signs of prior repairs. Follow suitable electrostatic-discharge precautions when handling loose PC components.

How contacts relate to CPU specifications

Physical cores: 6. Logical threads: 6. Base frequency: 3.10 GHz. Maximum Turbo frequency: 4.30 GHz. L3 cache: 9 Mb. Supported memory: DDR4-2666 MHz. The electrical interface connects the processor to motherboard power, memory and communication signals. Published model specifications tell you which platform to use; the photograph only illustrates the package and its physical connection surface.

Using the photograph for comparison

Compare this image with the front-side photograph and the detailed specification table for i5-8600. The reference also provides CPU-Info Benchmark scores and neighboring processors. These calculated results help organize model comparisons but do not constitute an on-device performance test or a diagnosis of a processor's condition.
