i5-2500 - back-side photo

i5-2500 - back-side photo
i5-2500, back view
Detailed specifications →Front photo →
CPU-Info Benchmark

Intel Core i5-2500 ranking

A calculated comparison score based on processor specifications.

Points57 000
Rank448
Compare nine processors

Processor contact side

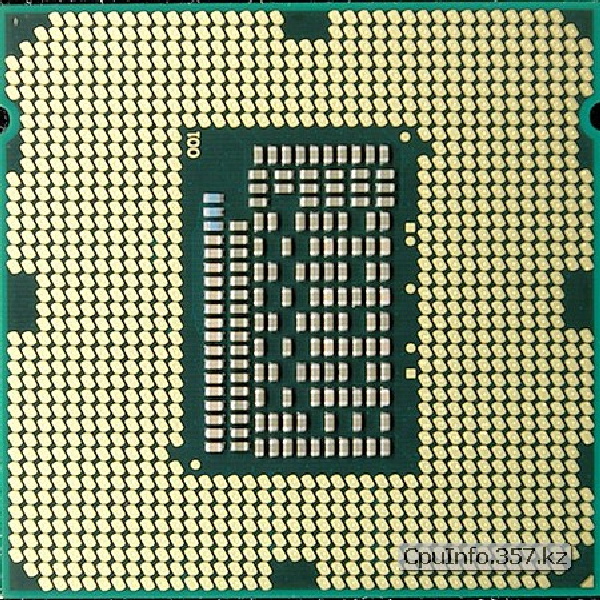

This photograph shows the back of the i5-2500 processor, including its contact side and substrate components. Detailed technical specifications are available on the model page.

Key specifications

Modeli5-2500
SocketLGA1155
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
444Q945057 341
445QX670057 341
446Q8400S57 141
447Q9400S57 141
448i5-250057 000
449i5-2500S56 800
450Q830056 701
451Q930056 701
452Q660056 301

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i5-2500: back-side photograph and contacts

Examining the contact side

The back-view photograph of Intel Core i5-2500 shows the processor substrate and its electrical contact area. Package and contact designs vary by processor family. Visual inspection can reveal obvious contamination or mechanical damage, but it cannot confirm that every connection works correctly or that the processor will initialize in a computer.

Why the socket matters

Specified socket: LGA1155. Package dimensions: 37.5mm x 37.5mm. Processors from different Intel families can share similar exterior dimensions without being interchangeable. Always compare the board socket, keying, supported CPU list and BIOS requirements. Do not attempt to install a processor using force when alignment or compatibility is uncertain.

Safe inspection before installation

Before fitting i5-2500, inspect the motherboard socket and the processor contact surfaces under good lighting. Avoid touching exposed contacts unnecessarily. Check for contamination, damaged pads, bent socket contacts and signs of prior repairs. Follow suitable electrostatic-discharge precautions when handling loose PC components.

How contacts relate to CPU specifications

Physical cores: 4. Logical threads: 4. Base frequency: 3.30 GHz. Maximum Turbo frequency: 3.70 GHz. L3 cache: 6 Mb. Supported memory: DDR3 1066/1333 MHz. The electrical interface connects the processor to motherboard power, memory and communication signals. Published model specifications tell you which platform to use; the photograph only illustrates the package and its physical connection surface.

Using the photograph for comparison

Compare this image with the front-side photograph and the detailed specification table for i5-2500. The reference also provides CPU-Info Benchmark scores and neighboring processors. These calculated results help organize model comparisons but do not constitute an on-device performance test or a diagnosis of a processor's condition.
