i3-4340 - back-side photo

i3-4340 - back-side photo
i3-4340, back view
Detailed specifications →Front photo →
CPU-Info Benchmark

Intel Core i3-4340 ranking

A calculated comparison score based on processor specifications.

Points51 161
Rank475
Compare nine processors

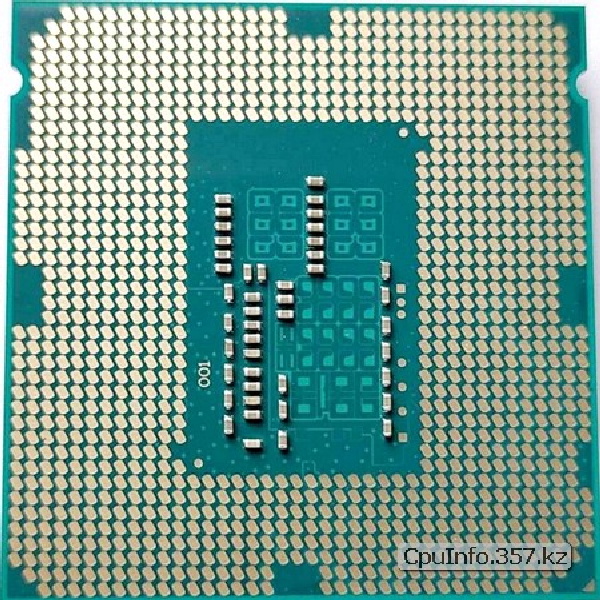

Processor contact side

This photograph shows the back of the i3-4340 processor, including its contact side and substrate components. Detailed technical specifications are available on the model page.

Key specifications

Modeli3-4340
SocketLGA1150
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
471G490052 101
472E3-122552 000
473i5-231052 000
474i3-436051 721
475i3-434051 161
476i3-435051 161
477i5-230051 000
478G4900T50 901
479i5-75050 820

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i3-4340: back-side photograph and contacts

Examining the contact side

The back-view photograph of Intel Core i3-4340 shows the processor substrate and its electrical contact area. Package and contact designs vary by processor family. Visual inspection can reveal obvious contamination or mechanical damage, but it cannot confirm that every connection works correctly or that the processor will initialize in a computer.

Why the socket matters

Specified socket: LGA1150. Package dimensions: 37.5mm x 37.5mm. Processors from different Intel families can share similar exterior dimensions without being interchangeable. Always compare the board socket, keying, supported CPU list and BIOS requirements. Do not attempt to install a processor using force when alignment or compatibility is uncertain.

Safe inspection before installation

Before fitting i3-4340, inspect the motherboard socket and the processor contact surfaces under good lighting. Avoid touching exposed contacts unnecessarily. Check for contamination, damaged pads, bent socket contacts and signs of prior repairs. Follow suitable electrostatic-discharge precautions when handling loose PC components.

How contacts relate to CPU specifications

Physical cores: 2. Logical threads: 4. Base frequency: 3.60 GHz. L3 cache: 4 Mb. Supported memory: DDR3-1333/1600 MHz. The electrical interface connects the processor to motherboard power, memory and communication signals. Published model specifications tell you which platform to use; the photograph only illustrates the package and its physical connection surface.

Using the photograph for comparison

Compare this image with the front-side photograph and the detailed specification table for i3-4340. The reference also provides CPU-Info Benchmark scores and neighboring processors. These calculated results help organize model comparisons but do not constitute an on-device performance test or a diagnosis of a processor's condition.
