i3-3245 - back-side photo

i3-3245 - back-side photo
i3-3245, back view
Detailed specifications →Front photo →
CPU-Info Benchmark

Intel Core i3-3245 ranking

A calculated comparison score based on processor specifications.

Points41 161
Rank513
Compare nine processors

Processor contact side

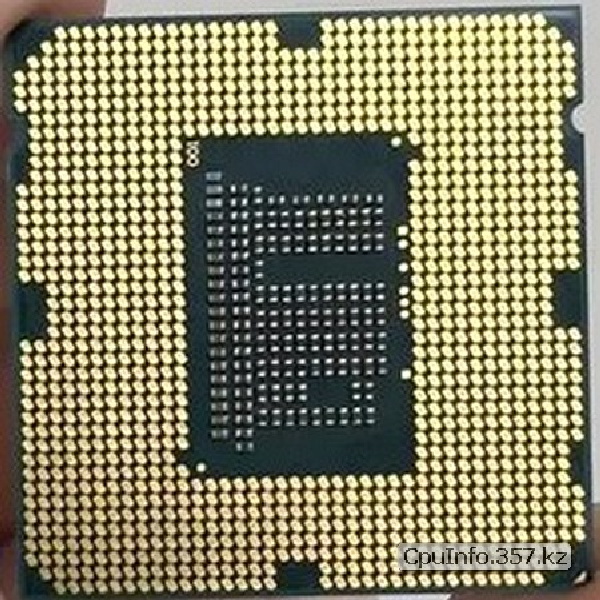

This photograph shows the back of the i3-3245 processor, including its contact side and substrate components. Detailed technical specifications are available on the model page.

Key specifications

Modeli3-3245
SocketLGA1155
Intended usedesktop computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
509G4500T41 601
510G346041 251
511G4400T41 251
512i3-324041 161
513i3-324541 161
514G345040 901
515i3-322040 671
516i5-2390T40 630
517G326040 551

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Core i3-3245: back-side photograph and contacts

Examining the contact side

The back-view photograph of Intel Core i3-3245 shows the processor substrate and its electrical contact area. Package and contact designs vary by processor family. Visual inspection can reveal obvious contamination or mechanical damage, but it cannot confirm that every connection works correctly or that the processor will initialize in a computer.

Why the socket matters

Specified socket: LGA1155. Package dimensions: 37.5mm x 37.5mm. Processors from different Intel families can share similar exterior dimensions without being interchangeable. Always compare the board socket, keying, supported CPU list and BIOS requirements. Do not attempt to install a processor using force when alignment or compatibility is uncertain.

Safe inspection before installation

Before fitting i3-3245, inspect the motherboard socket and the processor contact surfaces under good lighting. Avoid touching exposed contacts unnecessarily. Check for contamination, damaged pads, bent socket contacts and signs of prior repairs. Follow suitable electrostatic-discharge precautions when handling loose PC components.

How contacts relate to CPU specifications

Physical cores: 2. Logical threads: 4. Base frequency: 3.40 GHz. L3 cache: 3 Mb. Supported memory: DDR3 1333/1600 MHz. The electrical interface connects the processor to motherboard power, memory and communication signals. Published model specifications tell you which platform to use; the photograph only illustrates the package and its physical connection surface.

Using the photograph for comparison

Compare this image with the front-side photograph and the detailed specification table for i3-3245. The reference also provides CPU-Info Benchmark scores and neighboring processors. These calculated results help organize model comparisons but do not constitute an on-device performance test or a diagnosis of a processor's condition.
