E3-1230L V3 - back-side photo

E3-1230L V3 - back-side photo
E3-1230L V3, back view
Detailed specifications →Front photo →
CPU-Info Benchmark

Intel Xeon E3-1230L V3 ranking

A calculated comparison score based on processor specifications.

Points70 540
Rank357
Compare nine processors

Processor contact side

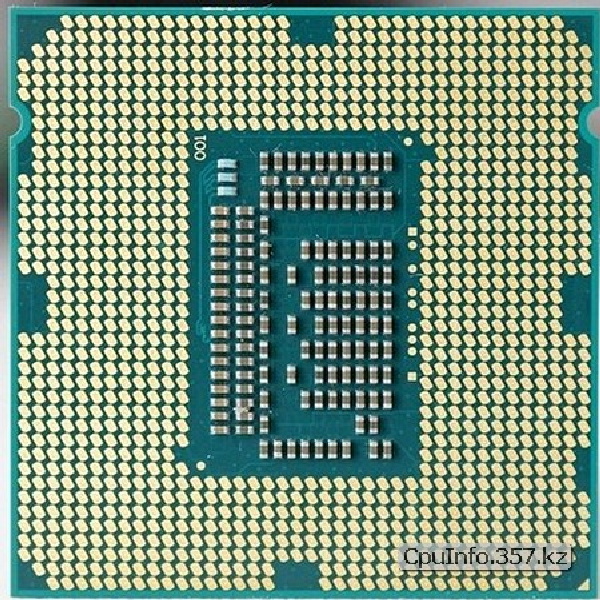

This photograph shows the back of the E3-1230L V3 processor, including its contact side and substrate components. Detailed technical specifications are available on the model page.

Key specifications

ModelE3-1230L V3
SocketLGA1150
Intended useserver computer
CPU-Info Benchmark

Compare nearby processors

Four models above, the selected processor, and four below. Points are calculated from specifications, not measured on a particular PC.

Full ranking
Other modelsSelected processor
353i5-4670K71 550
354i7-87071 424
355i5-467071 000
356i5-4670S70 800
357E3-1230L V370 540
358L336070 471
359G5905T70 461
360i5-459070 000
361i5-4590S69 800

Scores and positions may change as the CPU-Info Benchmark catalog grows.

Intel Xeon E3-1230L V3: back-side photograph and contacts

Examining the contact side

The back-view photograph of Intel Xeon E3-1230L V3 shows the processor substrate and its electrical contact area. Package and contact designs vary by processor family. Visual inspection can reveal obvious contamination or mechanical damage, but it cannot confirm that every connection works correctly or that the processor will initialize in a computer.

Why the socket matters

Specified socket: the socket listed in the specification table. Processors from different Intel families can share similar exterior dimensions without being interchangeable. Always compare the board socket, keying, supported CPU list and BIOS requirements. Do not attempt to install a processor using force when alignment or compatibility is uncertain.

Safe inspection before installation

Before fitting E3-1230L V3, inspect the motherboard socket and the processor contact surfaces under good lighting. Avoid touching exposed contacts unnecessarily. Check for contamination, damaged pads, bent socket contacts and signs of prior repairs. Follow suitable electrostatic-discharge precautions when handling loose PC components.

How contacts relate to CPU specifications

The electrical interface connects the processor to motherboard power, memory and communication signals. Published model specifications tell you which platform to use; the photograph only illustrates the package and its physical connection surface.

Using the photograph for comparison

Compare this image with the front-side photograph and the detailed specification table for E3-1230L V3. The reference also provides CPU-Info Benchmark scores and neighboring processors. These calculated results help organize model comparisons but do not constitute an on-device performance test or a diagnosis of a processor's condition.
